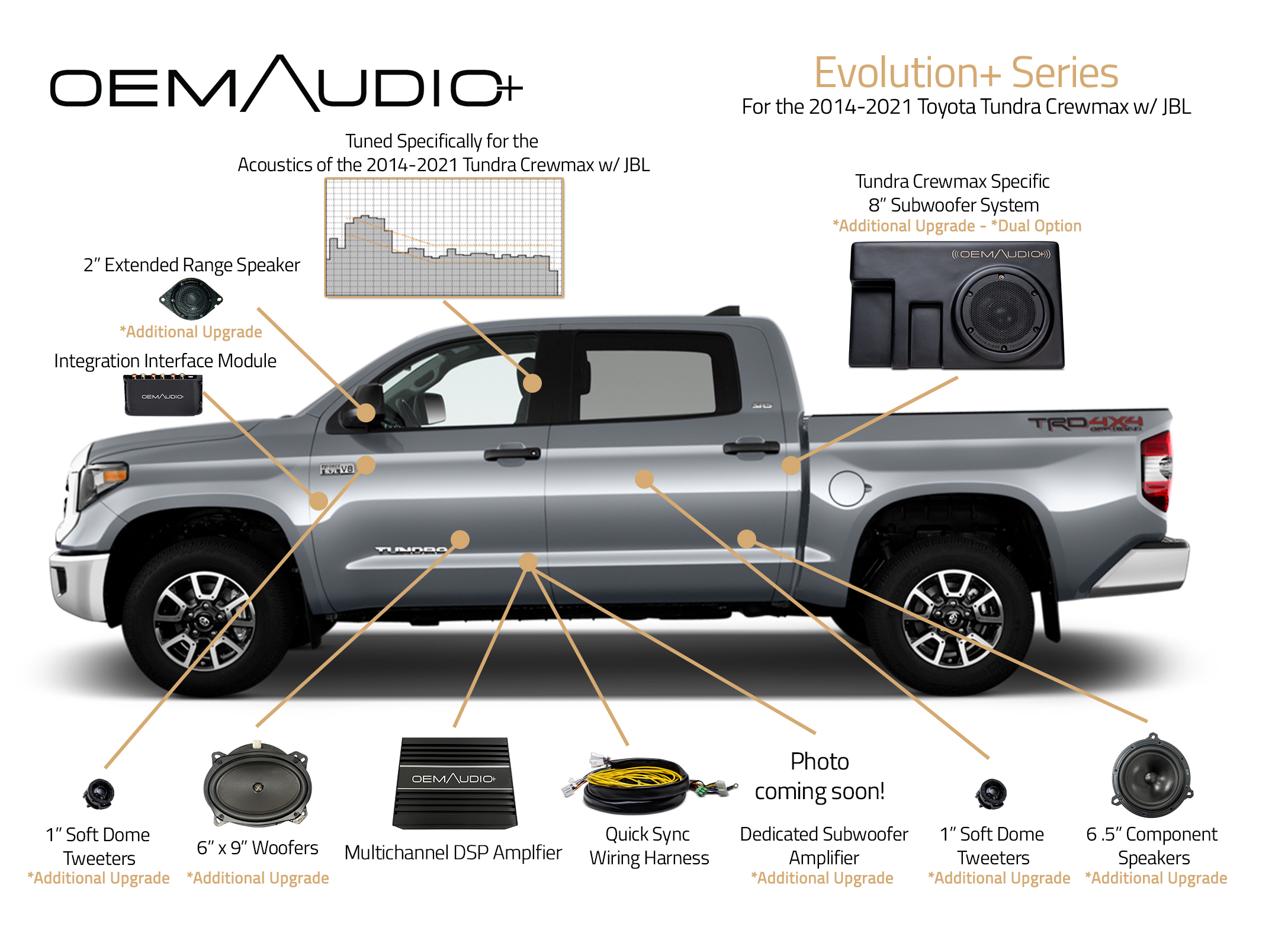

2014-2021 Toyota Tundra CrewMax w/ JBL Evolution+ Series
We offer two Sound Solutions for the 2014-2021 Tundra with factory JBL: The Evolution+ Series and the Enhancement+ Series.
The Evolution+ Series is an amplifier system that remasters all aspects of your current listening experience. This solution is guaranteed to deliver unmatched sound reproduction, seamless integration, and uncompromising reliability. You can expect unparalleled clarity, loudness, and deep bass response without impeding vocals, the moment you plug your Evolution+ Series solution in. Speakers also coming soon!
The Enhancement+ Series is a supplementary System (building upon your current factory setup). This solution simply adds our Tundra specific subwoofer system and upgraded dash 1-inch soft dome tweeters. The results are improved dynamics, clarity, and impactful low-frequency reproduction without introducing distracting characteristics to the current system. In short, a familiar but very much improved sound quality.
If you’re not sure if an option is for you or not, no worries, any option can be added later to an O+ existing Solution with a Seamless Upgrade Pathway. Therefore, you can choose the Tier solution you are confident is what you’re looking for, knowing that you can build upon it later.
Installation Difficulty
-
Installation Difficulty
-
Kit Includes
Evolution Series
- Multi-Channel Power Amplifier
- Integration Interface Module
- Quick-Sync Wiring Harness w/ Optical Cable
- Tundra-Specific Subwoofer System – Dual Option*
- Dedicated Subwoofer Amplifier
- Evolution Series Speakers*
- Dash OEM Audio Plus Edition Blam Audio 2″ Extended Range Speakers (2)
- Front O+ 1″ Soft Dome Tweeters (2)
- Front OEM Audio Plus Edition Blam Audio 6″x9″ Woofers (2)
- Rear O+ 1″ Soft Dome Tweeters (2)
- Rear OEM Audio Plus Edition Blam Audio 6.5″ Component Speakers (2)
- Evolution+ Series Center Speaker
- Center OEM Audio Plus Edition Blam Audio 2″ Extended Range Speaker (1)
Enhancement Series
- Rear 1″ Soft Dome Tweeters
- Acoustic Correction Filters
- Dedicated Subwoofer Amplifier
- Quick-Sync Wiring Harness
- Tundra-Specific Subwoofer System
Specifications
MULTI-CHANNEL 64-BIT DSP POWER AMPLIFIER
- Powers & Remasters All Speakers + Subwoofer
- 390 Watts RMS (Continuous / @ 2-ohms)
- 2 x 55 – Front Tweeters
- 2 x 70 – Front Door 6 x 9
- 2 x 70 – Rear Door Woof + Tweeter
- 64-bit/295 MHz DSP Chip
- Class HD topology
INTEGRATION INTERFACE MODULE
- Enables installation of the Evolution+ Series Amplifier Package while retaining all factory functionality
QUICK-SYNC WIRING HARNESS
- Maintains all factory functionality
- Constructed of genuine OEM connectors
- Fuse Holder Assembly is element proof butt-connectors w/ built-in solder
- < 4lbs / 1.8kg
TUNDRA SUBWOOFER SYSTEM* (DUAL OPTIONAL)
- 8″ Quad Voice-Coil Subwoofer
- Genuine Carbon Fiber Cone Woofer
- 100W RMS (200 Peak)
- Sensitivity 88.9dB (1 W,1M)
- Frequency Response: 20 -1000 Hz
DEDICATED SUBWOOFER AMPLIFIER
- Adds More Headroom + Low-Frequency Extension
- Power
- Single 8″ Subwoofer: (2 Ω): 250 Watts RMS
- Single 10″ & Dual 8″ Subwoofers: (2 Ω): 500 Watts RMS
- Protections: short circuit / low impedance / reverse polarity / thermal protection
- Includes Gain Control Knob for precision adjustability
OEM AUDIO PLUS EDITION BLAM AUDIO DASH & CENTER 2″ EXTENDED RANGE SPEAKERS
- 50 mm (2″) speaker
- Max power 50 W / Nominal power 25 W
- Frequency response 200 Hz – 45 kHz
- Sensitivity 85 dB – Impedance 4 Ω
- Aluminum basket
- Fiberglass and epoxy resin composite membrane
- Butyl perimeter surround
- Long life “Nomex” spider
- 20 mm voice coil on aluminum former
- Ultra powerful motor with 40 mm x 5 mm neodymium ring
- T-yoke equipped with a copper Faraday ring
- Optimized for use in closed volumes from 50 mL to 500 mL
OEM AUDIO PLUS EDITION BLAM AUDIO FRONT 6″ X 9″ WOOFER
- Max power 150 W / Nominal power 75 W
- Frequency response 55 Hz – 28 kHz
- Sensitivity 93 dB
- Impedance 2 Ω
- Steel basket
- High quality cellulose pulp diaphragm
- Butyl perimeter surround
- Long life ”Conex” spider
- 25 mm (1”) voice coil
- 85 mm x 17 mm magnetic motor
OEM AUDIO + EDITION BLAM AUDIO 6.5″ COAXIAL SPEAKERS
- Cellulose Pulp Membrane
- 165 mm (6.5”) Woofer
- 20mm Soft Dome Tweeter
- 2 Ohms
- 75W RMS (150W Peak)
- Sensitivity: 93 dB
- Frequency Response: 60 Hz – 20 kHz
- Drop-in 3D Printed Mounting Hardware Included
- Plug-n-Play Speaker Connectors
FRONT & REAR O+ 1″ SOFT DOME TWEETER
- Silk soft dome
- 4-ohms
- 50W RMS (100 Peak)
- Sensitivity 91.8 dB (1 W,1M)
- Frequency Response: 3,000-20,000 Hz
- Built-in 6db/Oct. High Pass Filter
- Neodymium Magnet Structure
Clean Crisp Clear
Refining the sound is a process on its own. Objective adjustments take you only so far. The ultimate test is our ears and the final sound is only achieved through extensive listening sessions amongst company peers. What you’re hearing is OEM Audio Plus.
Amplification
Subwoofer
- All the emotional weight of your music
- 14-liter sealed fiberglass cabinet
- Installs seamlessly using factory hardware locations
- Non-invasive design preserves all usable space
It sounds unbelievable.
Really what I was impressed with was the placement of the front stage.
The vocals and the strings can clearly be pulled out of the music
