- Designed from the ground up specifically for the FJ Cruiser
- Vehicle undergoes extensive acoustic measuring (using proprietary six microphone array)
- Tuned exclusively for the vehicle acoustics of the FJ Cruiser
- Optimized for all vehicle factory radios and most aftermarket options
- Plug and Play Installation (D.I.Y.)
- No splicing, drilling of holes or customization of body panels for installation.
- Vehicle factory warranty remains completely intact.
FJ Specific Subwoofer System.
Enjoy deep, non-localized bass response – without losing your space.

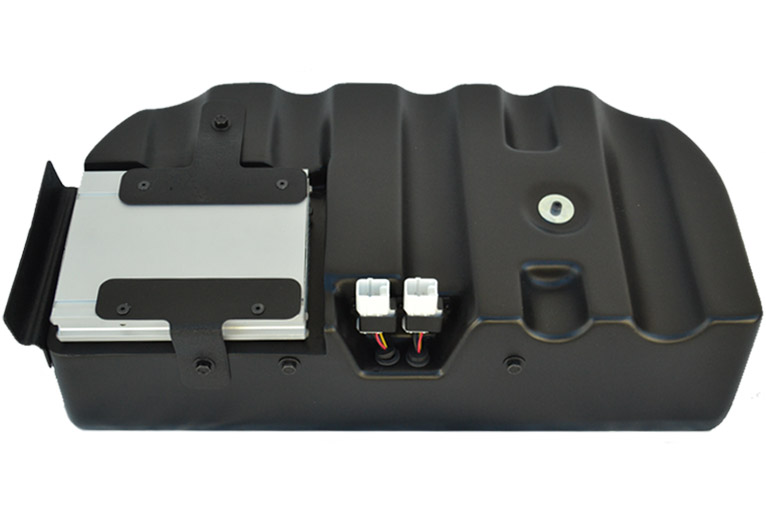

The OEM Audio Plus subwoofer system for the FJ Cruiser installs utilizing existing cargo area mounting locations. Mounted to rear of the 14-liter enclosure is our 32-bit DSP Power Amplification – Meaning a simpler installation and our signature sound reproduction the moment you fire it up.
- 8″ Quad Voice-Coil Woofer
- Genuine Carbon Fiber Cone Woofer
- 100W RMS (200 Peak)
- Sensitivity 88.9dB (1 W,1M)
- Frequency Response: 20 -1000 Hz
- 14 Liter Sealed Fiberglass Enclosure
- Tailored minimalist design
- Weighing in at 11.3lbs / 5.10kg
- Mounts utilizing existing hardware locations
An ensemble vs “parts”
Engineered specifically to perform together.
By optimizing our sound solutions as “Systems” as opposed to “parts” we are able to take sound reproduction within this space to a level that hasn’t been done before – all the while performing real-time diagnosis via our Digital Signal Processor. This level of scrutiny and control results in a powerful experience without fear of blowing a speaker, taxing your vehicle battery, inducing distortion or any other type of variable that may interrupt your enjoyment.
1” FRONT SOFT DOME TWEETER
- Dramatically enhances music’s clarity and detail
- Designed specific to FJ for both accurate fitment and superior acoustic reproduction.
- Install utilizing factory mounting plate and connector
- Built-in 6db/Oct. High Pass Filter
- Neodymium Magnet Structure
6 X 9” FRONT WOOFERS
- Provides ever-present bass without impeding vocals
- Designed to compliment our 1” Soft Dome Tweeter
- Drop-In speaker replacement (same mounting + connector)
- Carbon Fiber cone material for optimal performance.
Clean, unadulterated, undistorted power
Multi-Channel 32-Bit DSP Power Amplifier
- 360 Watts RMS (Continuous / @ 2-ohms)
- Cirrus-Logic 32-Bit Digital Signal Processing
- Real-time system diagnosis for trouble-free operation
- Meets all OEM standards including AEC-Q100
- Certified performance and operation for the life of your vehicle.
- Converts analog signals into digital signals by way of four analog- to-digital (A/D) converters.
- D/A converters and DSP will maintain signal integrity and precision adjustment not possible with an analog signal.
- Clean, clear and crisp sound achieved without requiring a massive power amplifier (via DSP).
Plug and Play
No splicing, no cutting, no guesswork.
We carefully took into consideration all the essentials necessary to create a system capable of reproducing a very high degree of detail, transparency and dynamics without compromising the integrity of the vehicle. Therefore we engineered the installation to be seamless, intuitive and fun. Everything was considered when designing Our Quick-Sync Wiring Harness. Learn More ►

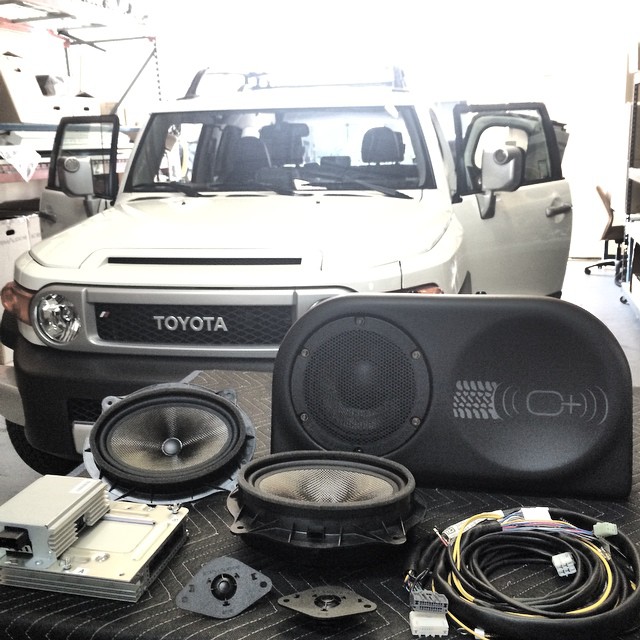

- Multi-Channel 32-Bit DSP Amplifier
- O+ Signature Sound
- Front 1″ Soft Dome Tweeter
- Front 6 x 9 Woofer (CF)
- 8” Quad-Coil Subwoofer System (CF)
- Quick-Sync “Plug & Play” Wiring Harness
- ** Dual Subwoofer Option Available **
