2005-2015 Toyota Tacoma DBL Cab System+ Series
BUILT-IN-BATCHES
The System+ Series transforms your ’05-15 Toyota Tacoma Double Cab into a finely tuned concert hall, providing unparalleled clarity and loudness. Delivering ever-present bass without impeding vocals.
System+ Series
- Multi-Channel 64-Bit DSP Power Amplifier
- Quick-Sync Wiring Harness
- 2005-2015 Tacoma Specific Subwoofer System – Dual Option*
- Dedicated Subwoofer Amplifier
- Upgraded Speakers*
- Front 1″ Soft Dome Tweeter
- Front OEM Audio Plus Edition Blam Audio 6″x9″ Woofers
- Rear OEM Audio Plus Edition Blam Audio 6.5″ Coaxials
- *Additional Upgrades
Installation Difficulty
-

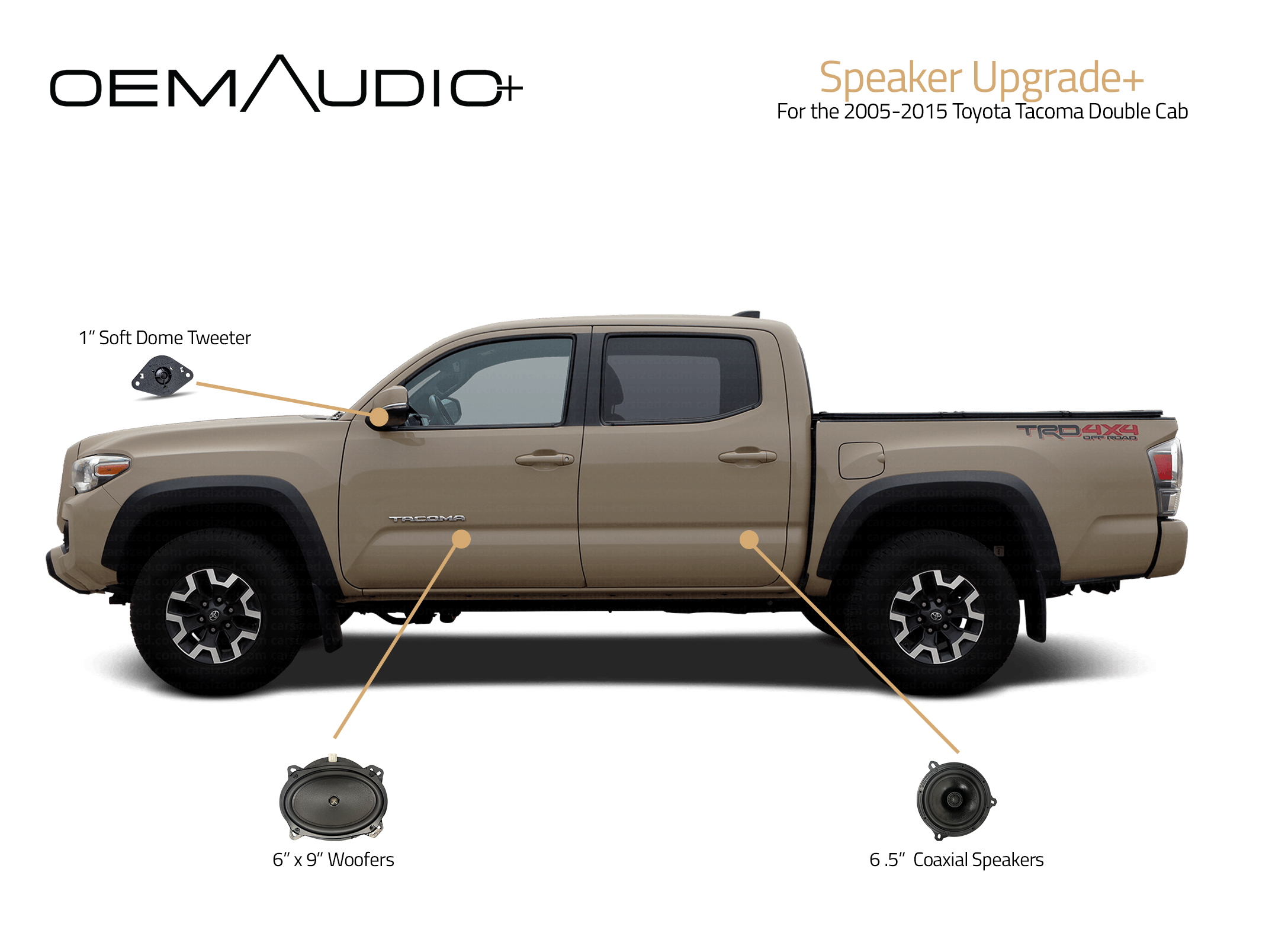

Speaker Upgrade+
- Front 1″ Soft Dome Tweeter
- Front OEM Audio Plus Edition Blam Audio 6″x9″ Woofers
- Rear OEM Audio Plus Edition Blam Audio 6.5″ Coaxials
Installation Difficulty
-
Kit Includes
- Multi-Channel 64-Bit DSP Power Amplifier
- Quick-Sync Wiring Harness
- 2005-2015 Tacoma Specific Subwoofer System – Dual Option*
- Dedicated Subwoofer Amplifier
- Upgraded Speakers*
-
- Front 1″ Soft Dome Tweeter
- Front OEM Audio Plus Edition Blam Audio 6″x9″ Woofers
- Rear OEM Audio Plus Edition Blam Audio 6.5″ Coaxials
-
- *Additional Upgrades
Specifications
MULTI-CHANNEL 64-BIT DSP POWER AMPLIFIER
- 360 Watts RMS (Continuous / @ 2-ohms)
- Cirrus-Logic 64-Bit Digital Signal Processing
- Real-time system diagnosis for trouble-free operation
- Meets all OEM standards including AEC-Q100
QUICK-SYNC WIRING HARNESS
- Maintains all factory functionality
- Constructed of genuine OEM connectors
- Fuse Holder Assembly is element proof butt-connectors w/ built-in solder
- < 4lbs / 1.8kg
2005-2015 TACOMA SPECIFIC SUBWOOFER SYSTEM – *DUAL OPTION
- 8″ Subwoofer
- 100W RMS (200 Peak)
- Sensitivity 88.9dB (1 W,1M)
- Frequency Response: 20 -1000 Hz
- * Dual Subwoofer System Optional
DEDICATED SUBWOOFER AMPLIFIER
- Adds More Headroom + Low-Frequency Extension
- Power
- Single 8″ Subwoofer: (2 Ω): 250 Watts RMS
- Dual 8″ Subwoofers: (2 Ω): 500 Watts RMS
- Protections: short circuit / low impedance / reverse polarity / thermal protection
- Includes Gain Control Knob for precision adjustability
UPGRADED SPEAKERS*
FRONT 1″ SOFT DOME TWEETERS
- Silk soft dome
- 4-ohms
- 50W RMS (100 Peak)
- Sensitivity 91.8 dB (1 W,1M)
- Frequency Response: 3,000-20,000 Hz
- Built-in 6db/Oct. High Pass Filter
- Neodymium Magnet Structure
OEM AUDIO PLUS EDITION BLAM AUDIO FRONT 6″ X 9″ WOOFER
- Max power 150 W / Nominal power 75 W
- Frequency response 55 Hz – 28 kHz
- Sensitivity 93 dB
- Impedance 2 Ω
- Steel basket
- High quality cellulose pulp diaphragm
- Butyl perimeter surround
- Long life ”Conex” spider
- 25 mm (1”) voice coil
- 85 mm x 17 mm magnetic motor
OEM AUDIO PLUS EDITION BLAM AUDIO REAR 6.5″ 2-WAY COAXIAL SPEAKERS
WOOFER
- Max power 150 W / Nominal power 75 W
- Frequency response 60 Hz – 25 kHz
- Impedance 3 Ω
- Sensitivity 93 dB
- Glass fiber reinforced composite salad bowl
- High quality treated cellulose pulp membrane
- Peripheral butyl suspension
- Spider long life ” Conex
- 25 mm coil on Kapton support
- Magnetic motor 85 mm x 17 mm
- Thick magnetic circuit (5 mm)
TWEETER WITHIN COAXIAL
- High quality 20 mm soft dome tweeter
- N38 neodymium motor
- Integrated 6dB/octave filter
Clean Crisp Clear
Refining the sound is a process on its own. Objective adjustments take you only so far. The ultimate test is our ears, as the final sound is only achieved through extensive listening sessions amongst company peers. What you’re hearing is OEM Audio Plus.
Amplification
Highly efficient Class HD Speaker Amplifier
• Powers and remasters all speakers + subwoofer
• Superior dynamics, volume, and impact
• 360 Watts RMS (Continuous / @ 2-ohms)
• Superior dynamics, volume, and impact
• 360 Watts RMS (Continuous / @ 2-ohms)
Subwoofer Amplifier (Optional)
• Subwoofer gain control knob.
• 250 Watts RMS (Continuous / @ 4-ohms)
Subwoofer
- All the emotional weight of your music
- 14-liter sealed fiberglass cabinet
- Installs seamlessly using factory hardware locations
- Non-invasive design preserves all usable space
It sounds unbelievable.
Really what I was impressed with was the placement of the front stage.
The vocals and the strings can clearly be pulled out of the music
