2022+ Subaru WRX Systems
Our solutions for your WRX will take your audio experience to new heights. The three systems below are designed to provide substantial improvements from the factory equipped audio. Enjoy the drive!
- System+ Series – takes our full system approach, replacing all speakers, adding two dedicated amplifiers, and our WRX specific subwoofer system, and our O+ dash tweeter. All with plug-and-play simplicity. Optional OEM Audio Plus Edition Blam Audio Front & Rear speaker replacements.
- Speaker Upgrade+ – Begin your journey to Clean, Crisp and Clear sound by this simple upgrade. Featuring our O+ dash tweeter, and OEM Audio Plus Edition Blam Audio Front & Rear speaker replacements.

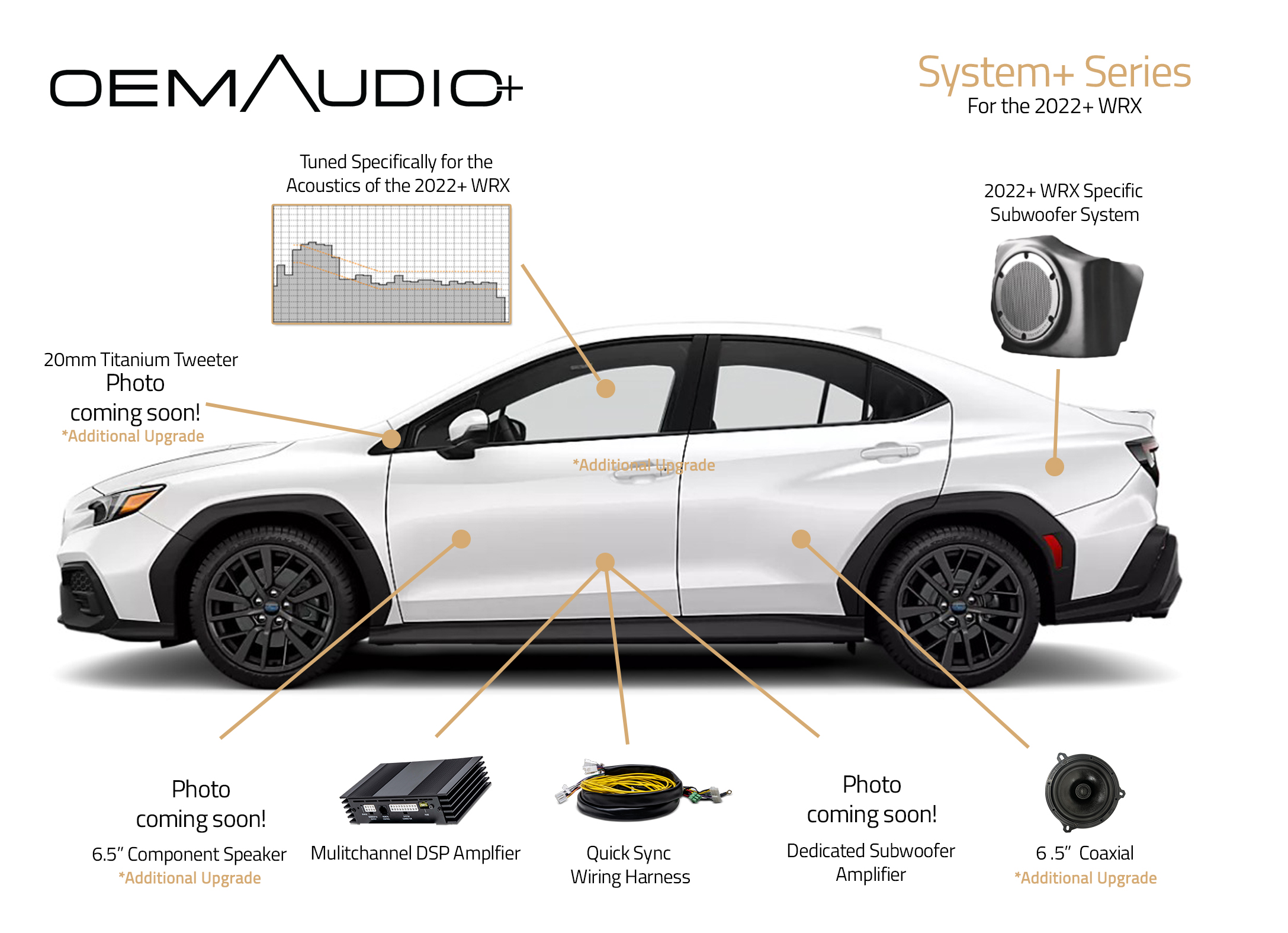

System+ Series
amplifiers, subwoofer, and tweeters with optional speaker replacements
Transform your 2022+ WRX into a mobile concert hall with the System+ Series. Experience unparalleled clarity, powerful volume, and deep, rich bass that enhances every nuance of your favorite music. Our O+ vehicle-specific 8″ Subwoofer takes low-frequency performance to the next level, delivering immersive depth and impact you can feel. Elevate your audio further with our OEM Audio Plus Edition Blam Audio 6×9″ Woofer & 6.5″ Coaxial speakers. Designed for seamless integration, all components are factory plug-and-play with custom mounting brackets, and the multichannel DSP amplifier is pre-tuned with our O+ vehicle-specific acoustic profile.
-
Kit Includes
- Multi-Channel 64-Bit DSP Power Amplifier
- Quick-Sync Wiring Harness
- 8″ WRX-Specific Subwoofer System
- Dedicated Subwoofer Amplifier
- Upgraded Speakers*
- Front 1″ Soft Dome Tweeter
- Front OEM Audio Plus Edition Blam Audio 6″x9″ Woofers
- Rear OEM Audio Plus Edition Blam Audio 6.5″ Coaxials
- *Additional Upgrades
Specifications
MULTI-CHANNEL 64-BIT DSP POWER AMPLIFIER
- 360 Watts RMS (Continuous / @ 2-ohms)
- Cirrus-Logic 64-Bit Digital Signal Processing
- Real-time system diagnosis for trouble-free operation
- Meets all OEM standards including AEC-Q100
WRX SUBWOOFER SYSTEM
- 8″ Subwoofer
- 100W RMS (200 Peak)
- Sensitivity 88.9dB (1 W,1M)
- Frequency Response: 20 -1000 Hz
DEDICATED SUBWOOFER AMPLIFIER
- Adds More Headroom + Low-Frequency Extension
- 250 Watts RMS
- Class D (95% efficient)
- Includes Gain Control Knob for precision adjustability
UPGRADED SPEAKERS*
FRONT 1″ SOFT DOME TWEETERS
- Silk Soft Dome
- 4-ohms
- 50W RMS (100 Peak)
- Sensitivity 91.8 dB (1W,1M)
- Frequency Response: 3,000-20,000 Hz
- Built-in 6db/Oct. High Pass Filter
- Neodymium Magnet Structure
OEM AUDIO PLUS EDITION BLAM AUDIO FRONT 6″ X 9″ WOOFER
- Max power 150 W / Nominal power 75 W
- Frequency response 55 Hz – 28 kHz
- Sensitivity 93 dB – Impedance 2 Ω
- Steel basket
- High quality cellulose pulp diaphragm
- Butyl perimeter surround
- Long life ”Conex” spider
- 25 mm (1”) voice coil
- 85 mm x 17 mm magnetic motor
OEM AUDIO PLUS EDITION BLAM AUDIO REAR 6.5″ 2-WAY COAXIAL SPEAKERS
- Glass fiber reinforced composite salad bowl
- High quality treated cellulose pulp membrane
- Peripheral butyl suspension
- Spider long life ” Conex
- 25 mm coil on Kapton support
- Magnetic motor 85 mm x 17 mm
- Thick magnetic circuit (5 mm)
- High quality 20 mm soft dome tweeter
- N38 neodymium motor
- Integrated 6dB/octave filter

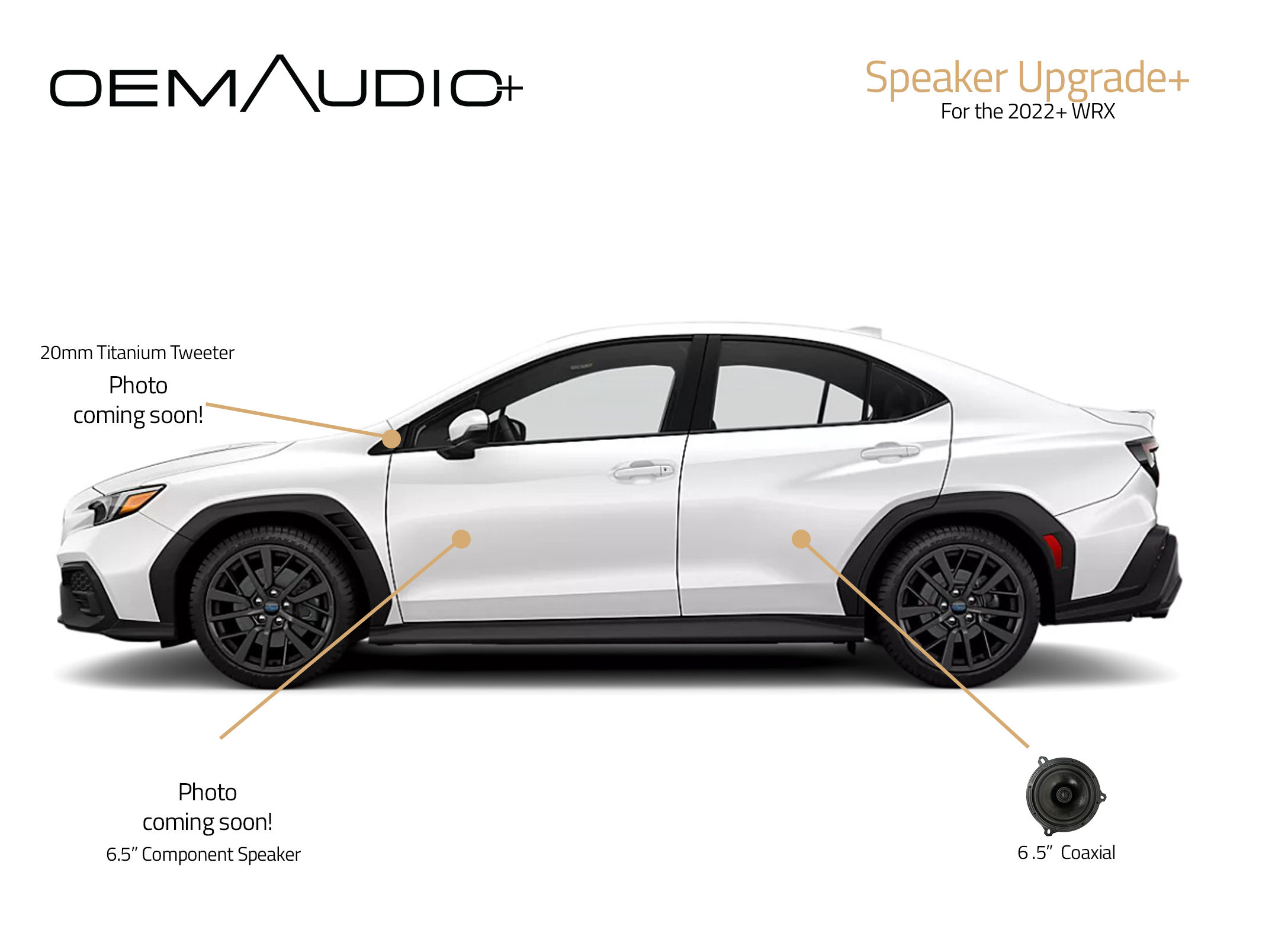

Speaker Upgrade+
full speaker replacements
Couple our strict design and engineering criteria for sound quality with our completely plug-and-play approach to installation and integration and you have a combination that will transform your listening experience. Zero vehicle modifications and superb results.
This upgrade includes replacement speakers for all 6 factory locations. Installation time is typically 1-2 hours and requires basic hand tools.
-
Kit Includes
- O+ Front 1″ Soft Dome Tweeter
- Front OEM Audio Plus Edition Blam Audio 6″x9″ Woofers
- Rear OEM Audio Plus Edition Blam Audio 6.5″ Coaxials
Specifications
O+ FRONT 1″ SOFT DOME TWEETERS
- Silk Soft Dome
- 4-ohms
- 50W RMS (100 Peak)
- Sensitivity 91.8 dB (1W,1M)
- Frequency Response: 3,000-20,000 Hz
- Built-in 6db/Oct. High Pass Filter
- Neodymium Magnet Structure
OEM AUDIO PLUS EDITION BLAM AUDIO FRONT 6″ X 9″ WOOFER
- Max power 150 W / Nominal power 75 W
- Frequency response 55 Hz – 28 kHz
- Sensitivity 93 dB – Impedance 2 Ω
- Steel basket
- High quality cellulose pulp diaphragm
- Butyl perimeter surround
- Long life ”Conex” spider
- 25 mm (1”) voice coil
- 85 mm x 17 mm magnetic motor
OEM AUDIO PLUS EDITION BLAM AUDIO REAR 6.5″ 2-WAY COAXIAL SPEAKERS
WOOFER
- Max power 150 W / Nominal power 75 W
- Frequency response 60 Hz – 25 kHz
- Impedance 3 Ω
- Sensitivity 93 dB
- Glass fiber reinforced composite salad bowl
- High quality treated cellulose pulp membrane
- Peripheral butyl suspension
- Spider long life ” Conex
- 25 mm coil on Kapton support
- Magnetic motor 85 mm x 17 mm
- Thick magnetic circuit (5 mm)
TWEETER WITHIN COAXIAL
- High quality 20 mm soft dome tweeter
- N38 neodymium motor
- Integrated 6dB/octave filter
64-Bit Digital Signal Processing
Subwoofer
- Sealed fiberglass cabinet
- Mounts using factory hardware locations
- Non-invasive design preserves cargo area space
