OEM Audio Plus

Desirable Sound for the Ruler of the Off-Road

Tacoma Dbl Cab Systems (05-15)

BUILT-IN-BATCHES

The Reference 500 transforms your ’05-15 Toyota Tacoma Double Cab into a finely tuned concert hall, providing unparalleled clarity and loudness. Delivering ever-present bass without impeding vocals.

[yotpo_bottomline]

Reference 500

amplifier, speakers, & subwoofer







Clear

-

System 500

amplifier & subwoofers






Clear

-

Speaker Upgrade

speakers



Clear

-

Kit Includes

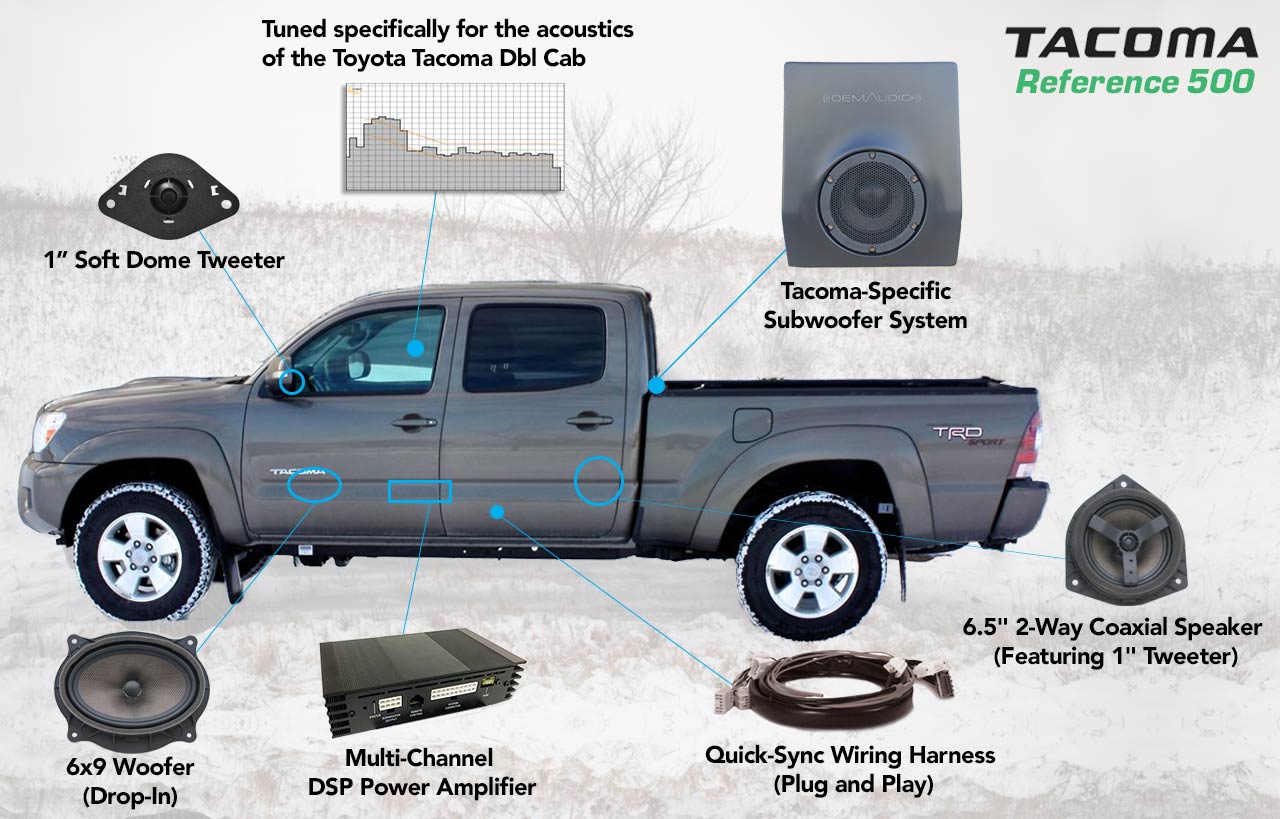

Reference 500 Includes:

  • Multi-Channel 64-Bit DSP Power Amplifier w/ Quick-Sync Wiring Harness
  • Tacoma-Specific Subwoofer System (*Dual Option*)
  • Dedicated Subwoofer Amplifier (*Optional*)
  • Front 1″ Soft Dome Tweeter
  • Front 6″ x 9″ Carbon Fiber Woofer
  • Rear 6.5″ 2-way Coaxial Carbon Speakers



System 500 Includes:

  • Multi-Channel 64-Bit DSP Power Amplifier w/ Quick-Sync Wiring Harness
  • Tacoma-Specific Subwoofer System (*Dual Option*)
  • Dedicated Subwoofer Amplifier (*Optional*)



Speaker Upgrade Includes:

  • Front 1″ Soft Dome Tweeter
  • Front 6″ x 9″ Carbon Fiber Woofer
  • Rear 6.5″ 2-way Coaxial Carbon Speakers

Specifications

MULTI-CHANNEL 64-BIT DSP POWER AMPLIFIER

  • 360 Watts RMS (Continuous / @ 2-ohms)
  • Cirrus-Logic 64-Bit Digital Signal Processing
  • Real-time system diagnosis for trouble-free operation
  • Meets all OEM standards including AEC-Q100

TACOMA SUBWOOFER SYSTEM

  • 8″ Quad Voice-Coil Subwoofer
  • Genuine Carbon Fiber Cone Woofer
  • 100W RMS (200 Peak)
  • Sensitivity 88.9 dB (1 W,1M)
  • Frequency Response: 20 -1000 Hz

DEDICATED SUBWOOFER AMPLIFIER* (OPTIONAL)

  • Adds More Headroom + Low-Frequency Extension
  • 500 Watts RMS
  • Class D (95% efficient)
  • Includes Gain Control Knob for precision adjustability
  • *Can be added in the future seamlessly

QUICK-SYNC WIRING HARNESS

  • Maintains all factory functionality
  • Constructed of genuine OEM connectors
  • Fuse Holder Assembly is element proof butt-connectors w/ built-in solder
  • < 4lbs / 1.8kg

Reference 500 & Speaker Upgrades Only

FRONT 1″ SOFT DOME TWEETER

  • Silk soft dome
  • 4-ohms
  • 50W RMS (100 Peak)
  • Sensitivity 91.8 dB (1 W,1M)
  • Frequency Response: 3,000-20,000 Hz
  • Built-in 6db/Oct. High Pass Filter
  • Neodymium Magnet Structure

FRONT 6″ X 9″ WOOFER

  • Carbon Fiber Cone Woofer
  • 2-ohms
  • 50W RMS (100 Peak)
  • Sensitivity 90.2 dB (1 W,1M)
  • Frequency Response: 50-12,000 Hz

REAR 6.5″ 2-WAY COAXIAL SPEAKERS

  • Featuring 1″ Tweeter
  • Carbon Fiber Cone Woofer
  • 2-ohms
  • 50W RMS (100 Peak)
  • Sensitivity 90.2 dB (1 W,1M)
  • Frequency Response: 55-20,000 Hz

Clean Crisp Clear

Refining the sound is a process on its own. Objective adjustments take you only so far. The ultimate test is our ears, as the final sound is only achieved through extensive listening sessions amongst company peers. What you’re hearing is OEM Audio Plus.

Speakers

• Superior dynamics, blending and low frequency response
• Engineered for the perfect fit (drop-in installation)
• Cutting edge performance w/ carbon fiber cone & neodymium magnet

Subwoofer

  • All the emotional weight of your music
  • 14-liter sealed fiberglass cabinet
  • Installs seamlessly using factory hardware locations
  • Non-invasive design preserves all usable space

Amplification

Highly efficient Class HD Speaker Amplifier
• Powers and remasters all speakers + subwoofer
• Superior dynamics, volume, and impact
• 360 Watts RMS (Continuous / @ 2-ohms)
Subwoofer Amplifier (Optional)
• Subwoofer gain control knob.
• 320 Watts RMS (Continuous / @ 4-ohms)

64-Bit Digital Signal Processing

• Calibrated to deliver high-resolution audio upon plug in
• You can expect seamless, full-range, detailed sound reproduction
• Extremely powerful 64 bit processing power and sound optimization
• 295 MHz DSP Chip | Class HD Topology

It sounds unbelievable. Really what I was impressed with was the placement of the front stage. The vocals and the strings can clearly be pulled out of the music

Sean Hollman

Motor Trend
